Interlocking

Cladding

Our premium interlocking cladding offers superior protection and aesthetic appeal. Explore our wide range of designs and materials today!

Characteristics

Providing a very striking, modern look with recessed gaps between each panel. The panels are self supporting and can be fabricated in a variety of metals and sizes.

Applications

The Interlocking system is suitable for walls and ceilings only. It is not suitable for roofing applications as the recess gap joins are not waterproof when flooded.

The panels can be installed vertically or horizontally.

The width of the recessed gap is nominal 15mm. It can be changed to the range between 5mm and 25mm.

Applications are both possible in vertical and horizontal orientations.

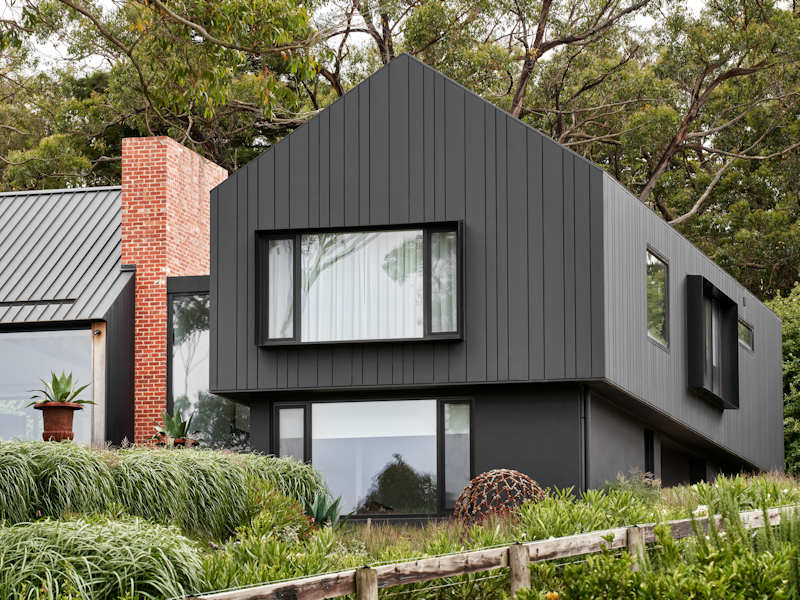

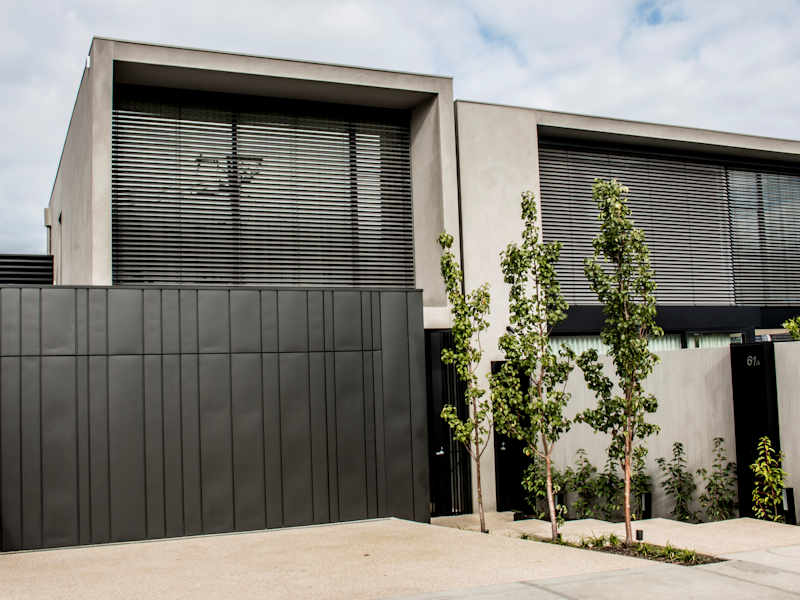

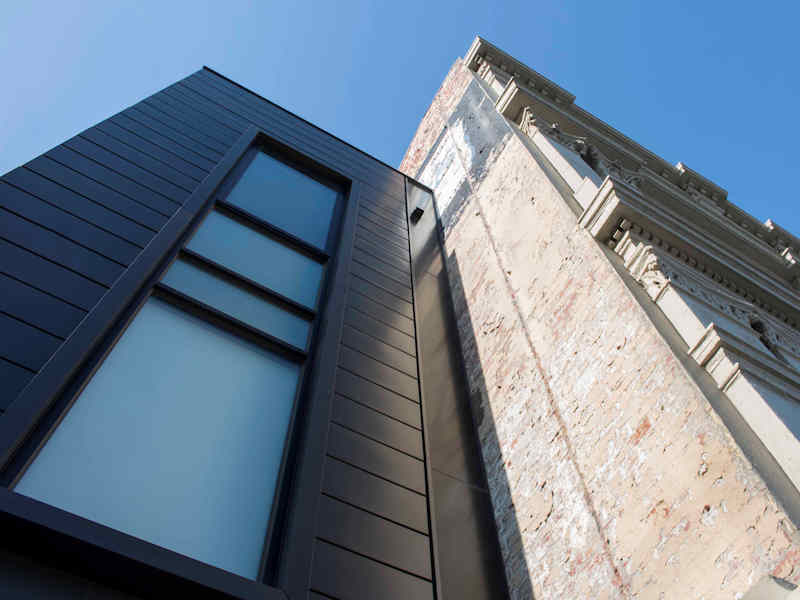

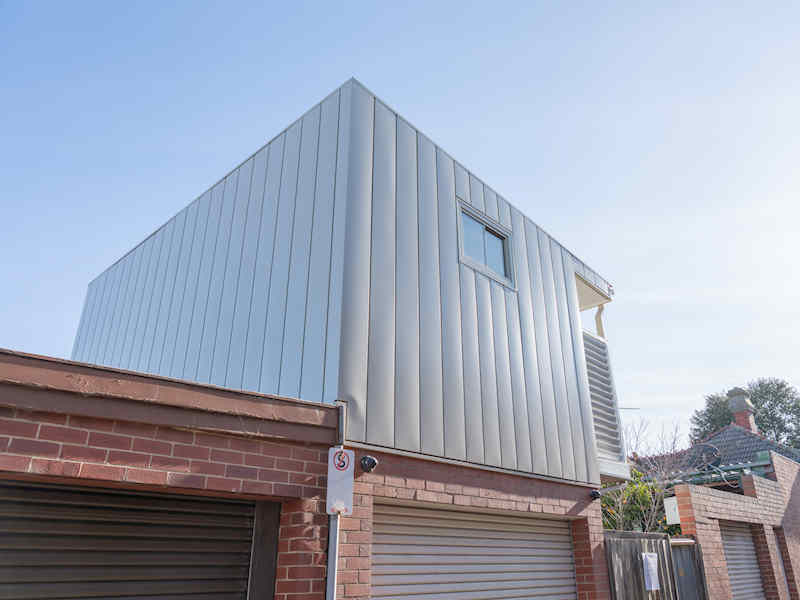

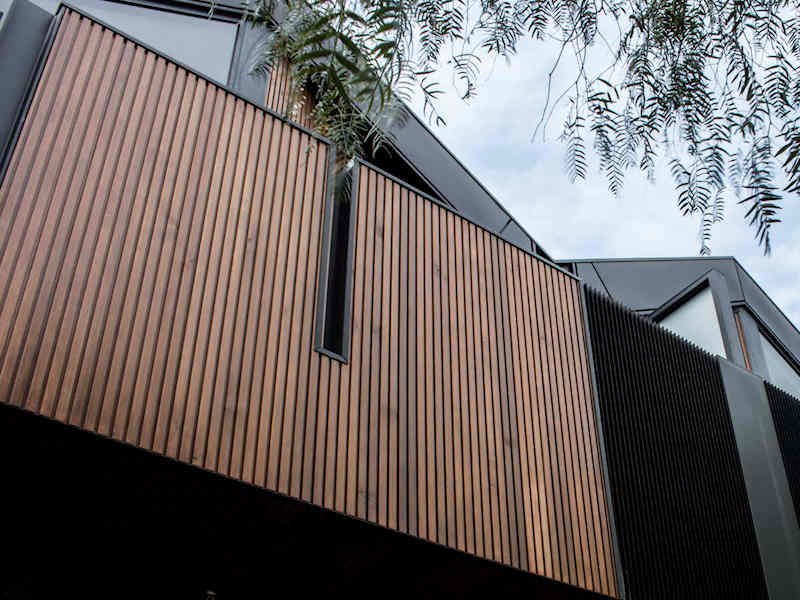

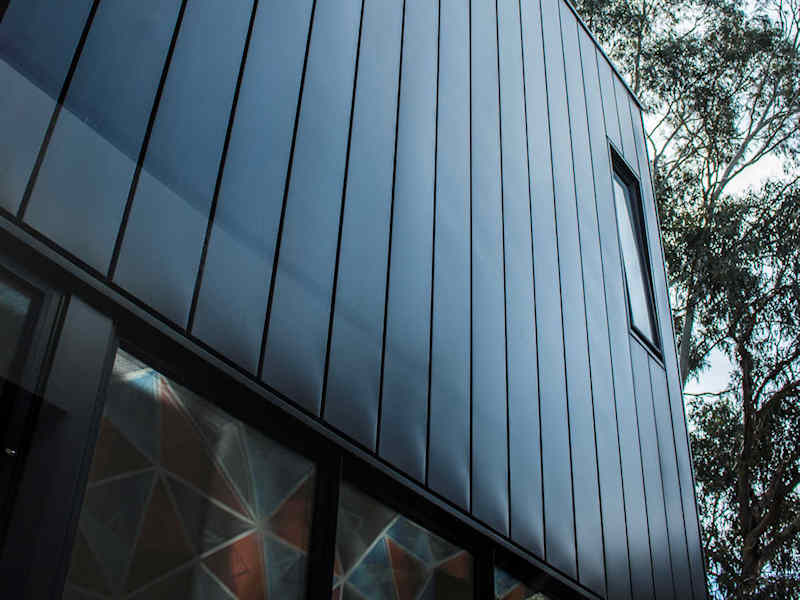

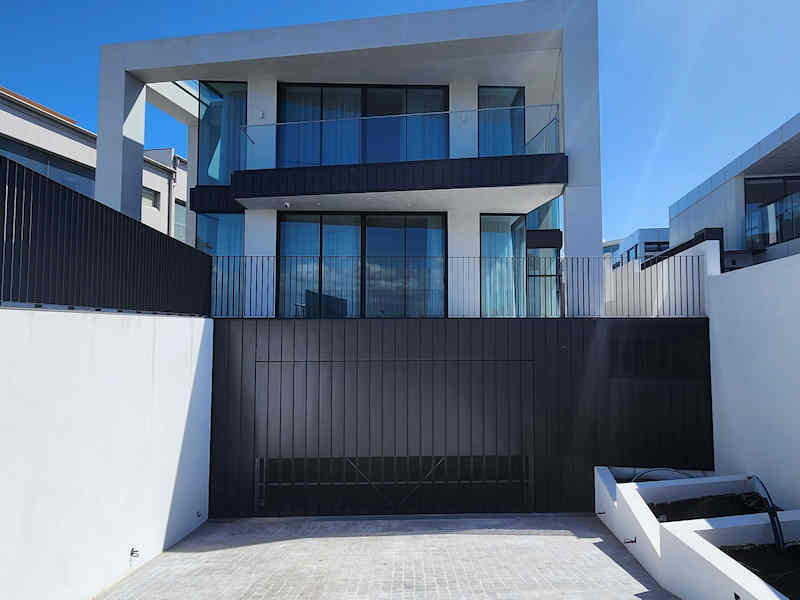

View Projects

Interlocking
Cladding

Interlocking cladding is a smart choice for roofing due to their superior strength and ability to withstand the Australian climate.

They lock tightly together, forming a secure barrier against wind, rain, and debris.

Looking past their practical benefits, interlocking shingles also add to the aesthetic appeal of any home, offering a sleek and modern roofing finish.

Interlocking Cladding – What You Need to Know

System Buildup

On a wall cladding application with the Interlocking system it is imperative that there is a quality type membrane installed over the main structure.

This needs to be fully tape sealed to ensure no water ingress can occur.

On top of that, metal battens provide the fixing points for each panel and flashings required.

Standard Sizes

1,200mm wide coils (Aluminium, Colorbond, some Copper)
- 205mm
- 305mm
1,000mm wide coils (VM Zinc, EL Zinc, Rheinzink, Copper)
- 238mm
Wider panels can be produced of course. Going beyond the 238mm mark in Zinc and copper materials it is vital to increase the thickness of the material to 1mm ensuring a reasonably flat panel surface.
The vast majority of our Interlocking cladding project is made to suit each project and will have customized panel sizes.

The Interlocking system has a nominal panel thickness of 25mm. We predominantly use 25mm high top hat channels resulting in a cladding zone of 50mm from the structure.

At AMC, we believe transforming your property goes beyond surface beauty. Maybe you’re looking to transform your clients’ space by combining modern cladding with traditional architecture. Or, you may want innovative insulation to help lower your energy bills and reduce your carbon footprint.

With combined industry experience of more than 40 years in the architectural roof and facade cladding world, AMC has the product and installation expertise to bring your vision to life and deliver a space that’s equal parts functional and aesthetic.

To learn more about our services please contact a member of our team on 0497 009 390.

You Bring the Challenge, We Bring the Solution.
